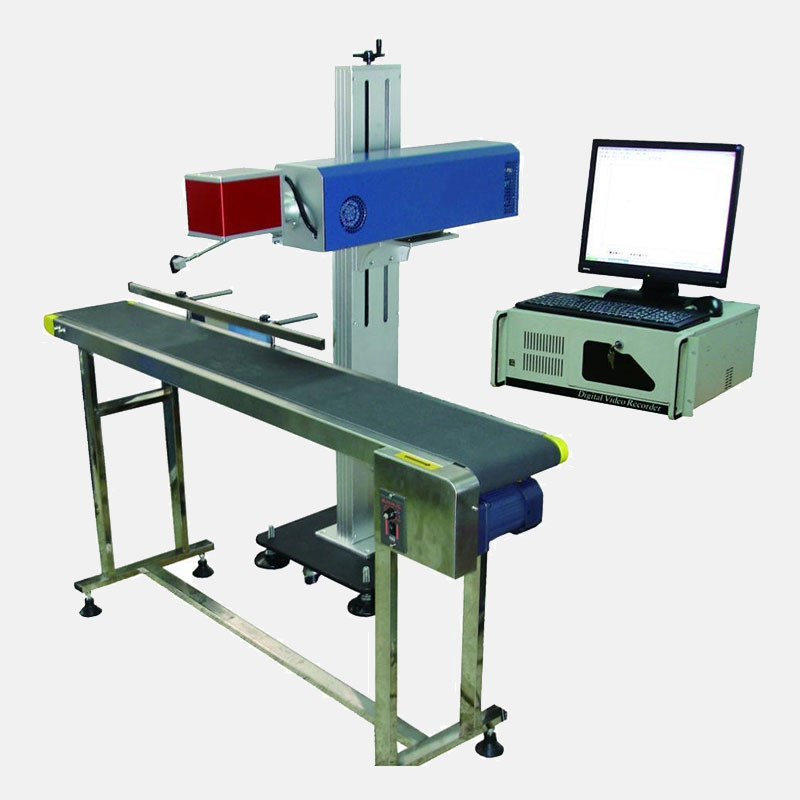

Laser marking machine

Home ProductsLaser marking machine

Laser marking machine

Features:

Extremely high efficiency

The perfect combination of software and hardware, combined with ultra-high speed imported galvanometer, effectively increases production capacity that the marking speed can reach 10000mm/s.

Unmanned operation

Coordinated with visual system, no need for positioning, unmanned operation

Long life & low maintenance

Fully air-cooled fiber laser that has a very long life, 100000 hours no consumables, low maintenance and operating costs.


  • Product Details

Model

JL--20FM

JL-30FM

JL-50FM

Max   laser power

20W

30W

50W

Laser   wavelength

1064nm

Q-switch   frequency

20KHz---100KHz

Engraving   range

Standard   configuration:100 x 100mm

Optional   range: 50mm x 50mm---300mm x 300mm

Carving   line speed

≤10000mm/s

Repeatability

±0.002mm

Overall   power

400W

500W

600W

Power   demand

AC220V/50Hz/5A

Cooling   system

Air-cooled
